Continuous Filament Mat for Compression moulding

Continuous Filament Mat for Compression moulding

Product Features:

◎ high mechanical properties and and good moldability

◎ Excellent agent guarantee various resin compatibility

◎ Very good surface appearance

◎ Very good adaptability in moulds of complex shapes

◎ Good insulation performance and good corrosion resistance

◎ High temperature resistance

◎ Easy to cut, splice and overiap with reduced waste

◎ Fast wet out

Inquire Now

Collection

Product Details

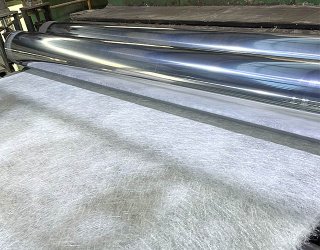

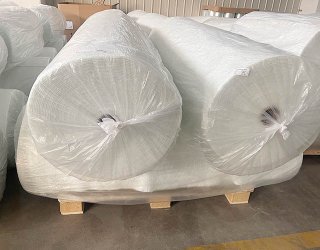

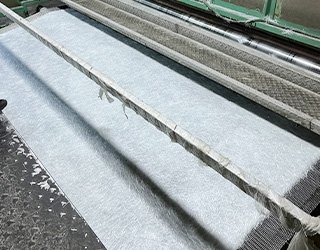

Continuous Filament Mat (CFM) is a non-woven mat made from ECR glass filaments, consisting of continuous fibres randomly orientated in multiple layers. The glass fibre is bonded with a silane coupling agent and the layers held together with a suitable binder.CFM products contain an insoluble binder for unsaturated polyester, epoxy and polyurethane compatibility in unfilled or filled resin systems.In certain applications, CFM also shows good compatibility with polyurethane foams.

Product Parameters

emulsion mats	Weigh（g/m²）	Moisture Content (%)	Binder Content	Tensile Strength (N/150mm)	Width (mm)
EMC300	300	≤0.20	2-6	≥220	1040/1250/1270
EMC400	400	≤0.20	2-6	≥320	1040/1250/1270
EMC600	600	≤0.20	2-6	≥380	1040/1250/1270

Solution to Markets

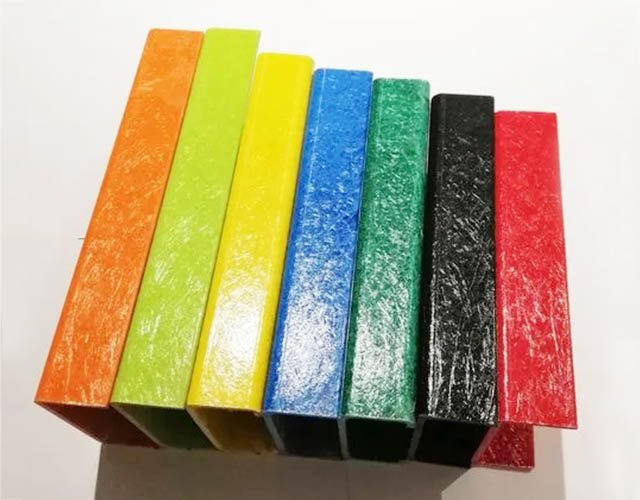

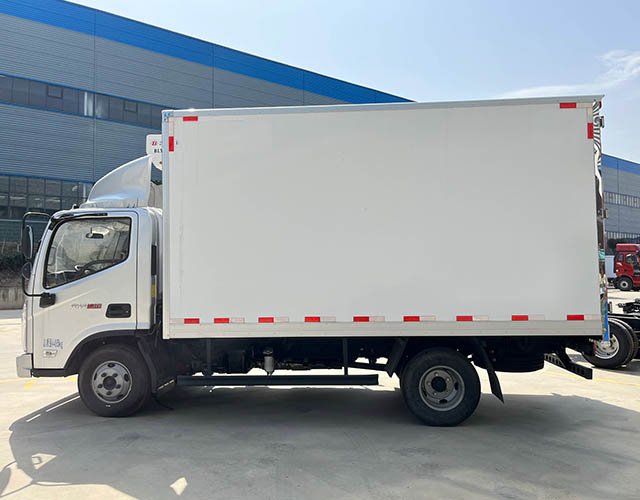

The products can be widely used in the fields of automotive ceiling trims, sun visors, rear shelves, spare tire covers, fenders, refrigerated car boxes, high-voltage insulation materials for transformers, reinforced profiles, and reinforced doors and windows, and can also be used in thermoplastic Reinforcement sheet (AZDEL GMT) and reinforcement for asphalt linoleum, plastic flooring, geotextiles.
