E-glass fiber Plain Weave Cloth is woven by fiber glass yarn, which is treated with silane coupling agent, the kind of weave is plain. It is base material of high strength,low extensibility,coating with resin easily and surface flat and so on.

Product Details

E-glass fiber Plain Weave Cloth is woven by fiber glass yarn, which is treated with silane coupling agent, the kind of weave is plain. It is base material of high strength,low extensibility,coating with resin easily and surface flat and so on.

Product Parameters

Warp YarnG75 1/0
Fill YarnG75 1/0
Basic Weight (g/m2)203 ±3
Thread Count Warp (Per Inch)44 ±2
Thread Count Fill (Per Inch)32 ±2
Tensile Strength Warp (kgf/cmd)15↑
Tensile Strength Fill (kgf/cmd)10↑
Loss of Ignition (%)0.065 ±0.03
Thicness (um)168 ±10
DistortionFull:1.2%↓


Solution to Markets

The fabric has an excellent dimensional stability,are compatible with polyester,epoxy resin and vinyl ester, and mainly used for hand lay-up of large,high-strength FRP products such as boats,automobile parts,storage tanks,furniture and other.


Produce & Shipment

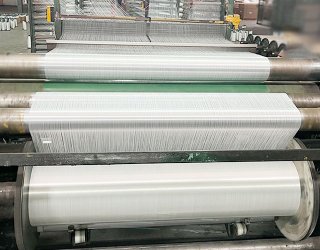

  • 1

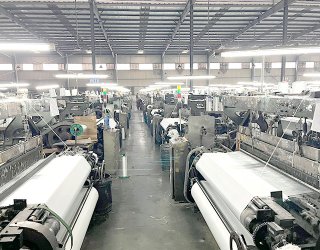

  • -1_0002_IMG_4309

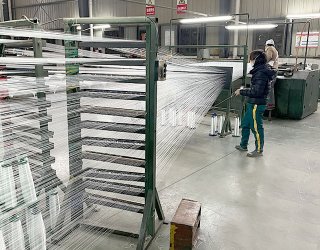

  • -1_0004_IMG_4299

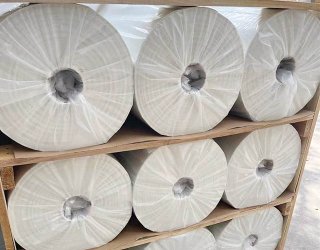

  • -1_0002_微信图片_20230901140004

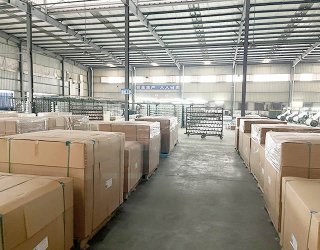

  • -1_0001_IMG_4289

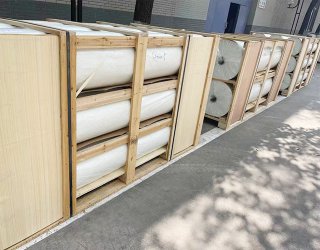

  • -1_0000_微信图片_20230901140015

Exhibition Display

  • -1_0000_微信图片_20230508152045
  • -1_0001_IMG_20190314_133005
  • -1_0004_IMG20190312101527
  • -1_0007_IMG20190313120000
  • -1_0004_微信图片_20230508141146
